Limited Time
SPRING CLEAN
LAB12
INTEGRE 4 - Integrated Tube Amplifier with Matching DAC & Phono Stage
$11,990 inc GST AUD - Sold as a set One Only Set
Ex Demo - Black - 12 Months Warranty 1/9/2025
KT150 from factory Tubes. Note this is the outgoing model.
Remote Control
Large OLED display
Blue Velvet ALPS motorized potentiometer
Sophisticated protection and bias monitoring system
No feedback design
SRSG® implementation
5mm Aluminum face panel
Five Years Guarantee
Technical specification (according to manufacturer):
Power: 230VAC 50Hz (115VAC 60Hz)
Power consumption: 350 VA max
Output power: 65 Watt per channel (KT150)
Frequency response: 15 Hz – 60 KHz (-1dB)
Input impedance: 50K ohm
Recommended speakers: 4-8 ohm ( excellent with Piega and Dynaudio )
Tubes complement: 4x 6n1p dual triodes, 4x KT150 power pentodes
Inputs: 5x line stereo RCA connectors
Available Color : Black Only
Dimensions (WxHxD): 43x19x29 cm
Weight: 20Kg
12 Month Warranty on this unit.
Note this unit is not made to cater for the optional Tube Cage . This is your chance to grab a sensational package deal we are making available until 12/9/2025.
1
EL34, 6550, KT88, KT120 compatible plus a Tube use Counter
2
Simple Tube Bias Adjustment & OLED display
3
Full Width Unit 43CM
4
Made in Europe with the Cool Retro Vibe
5
5 Inputs & Remote
6
impressive 65W per channel & able to drive low efficiency speakers with ease
LAB12
MELTO 1 PHONO STAGE & DAC 1 REFERENCE
Tube Component package
$11,9990 inc GST AUD - Sold as a set One Only Set - Integre4, Melto1, DAC1 Reference all Ex Demo - Black - 12 Months Warranty Offer - Packed and ready to go.

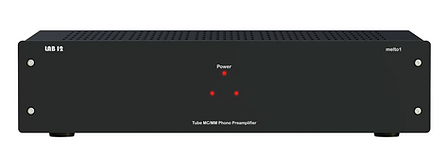

Melto 1
MM/MC cartridge type
Gain MM: 41dB
Gain MC: 66 d
Input impedance: adjustable (32 ohm – 100Kohm)
Input capacitance: adjustable (0-300pF)
De-emphasis curve: RIAA
Input: line stereo (RCA connectors)
Output: line stereo (RCA connectors
Full Tube Design
Full adjustable settings: Cartridge type, Impedance, Capacitance
Toroidal power transformer
No feedback design
SRSG® implementation
Fine symmetry® implementation
5mm Aluminum face panel
Dimensions (WxHxD): 43x19x29 cm
Weight: 6Kg
12 Month Warranty on these units.
Tube complement: 2x 6N1P-EV dual triode, 2x 6n2p-EV dual triode
DAC 1 Reference
Input Sampling Rate up to 24bit/192 kHz
Non Oversampling mode
8x Multibit Philips DACs network
2x Dual Triodes tubes I/V analog output stage
6 Separate Regulated Power Supplies
Toroidal power transformer
SRSG® implementation
Fine symmetry® implementation
Analog retro Nissei VU meters
5mm Aluminum face panel
Dimensions (WxHxD): 43x19x29 cm
Weight: 7Kg
Inputs: 2x SPDIF (Coaxial RCA), 1x USB2, 1x spdif (Optical Toslink)
• Outputs: 2x RCA, 2x XLR unbalanced (balanced version available)
Frequency response: 20Hz to 20 KHz + 0dB/-1dB
THD: lower than 0.15%
Rated output level: 2.5Vrms
Tube complement: 2x 6922 dual triode
​
1
Tube complement: DAC 1
2x 6N1P-EV dual triode,
2x 6n2p-EV dual triode
2
Dac1 reference uses eight multibit Philips DAC chips in a complex parallel configuration right after an efficient layout digital receiver stage, allied with two dual triodes tubes in output stage.
4
Made in Europe with the Cool Retro Vibe
5
Non Oversampling DAC with Tube Output
3
Full Width Unit 43CM
6
Toroidal power transformer
